EJOT TSSD®

EJOT_EPPsys_TSSD_2
EJOT_EPPsys_TSSD_1
EJOT_TSSD_Waben_Griff

Especificações

  • Visão geral

    • Elemento e processo de fixação especificamente para elementos sanduíche
    • Ampla gama de aplicações
    • Especialmente adequado para estruturas alveolares
    • Forças de tração transmissíveis altas
    • Sem corrosão
    • Pode ser usado como ressalto de parafuso ou como elemento de fixação direta

Sebastian Schrodt

Head of Sales EJOWELD


CAD e muito mais em ejot.com

Com o registro único, fornecemos nesta área dados CAD em vários formatos, além de PDFs dos desenhos técnicos de nossos produtos DELTA PT®, SHEETtracs® e ALtracs Plus®.

Além disso, o CAD & more oferece a possibilidade de projetar suas articulações individuais com o auxílio de programas de prognóstico ou verificar sua viabilidade através de VERIFICAÇÕES DE APLICAÇÃO. Além disso, você pode fazer o download dos mais recentes folhetos de produtos, publicações técnicas e os padrões da empresa EJOT.


CAD & more

The EJOT TSSD® thermal adhesive bonding boss

The EJOT® TSSD (thermal adhesive bonding boss) product and corresponding joining process have been developed with the objective to join components of which one is made of fibre-reinforced plastics.

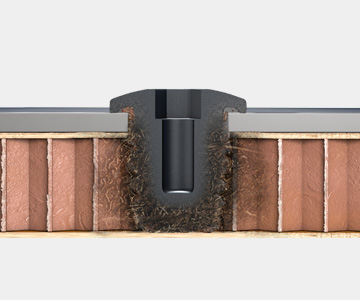

The process is suitable for sandwich elements with honeycomb and foam core structures (having different top coats) as well as for CRP and GRP plastic materials.
During the joining process the plastic boss (made of thermoplastic) is installed into the plastic component with a certain rotation speed and axial load.

EJOT TSSD® for direct assembly

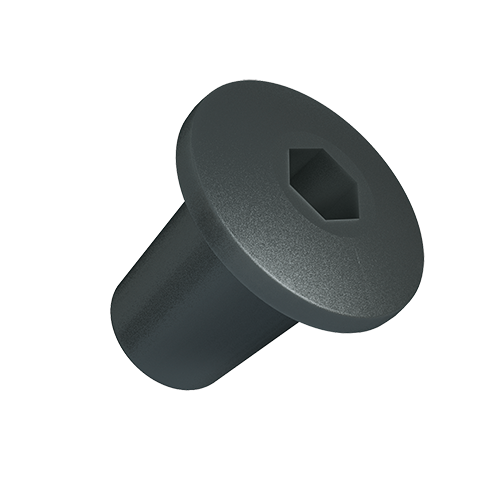

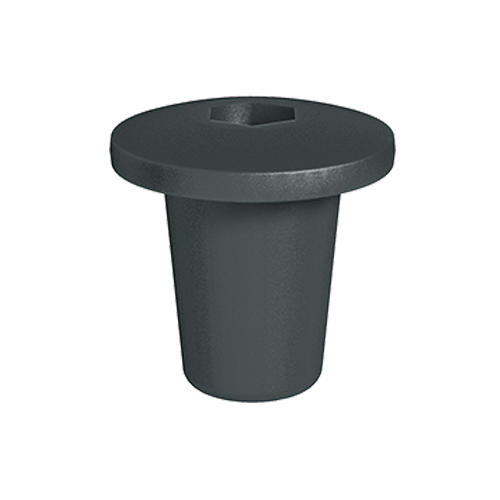

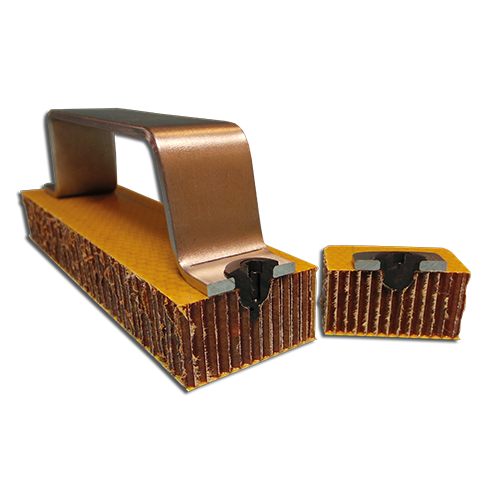

The TSSD® version with collar head is suitable for direct fastening of a thin clamping part to a corresponding component structure. The material of the clamping part can be freely selected - all that is needed is a pre-hole through which the TSSD® can penetrate into the component structure.

EJOT TSSD® as screw-in boss

If the application involves creating a screw-in option in a component, TSSD® variants without a collar head are used. They are inserted flush into the component during the installation process and then act as a screw-in boss for EVO PT® screws with diameters of 4 or 5 mm.


EJOT TSSD® as snap-fit solution

The TSSD® technology can also be used for snap-fit solutions. For this purpose, we offer a variant of the TSSD® with a ball head which -  together with a corresponding counterpart (ball socket) - can be used to create a detachable snap-fit connection.

Customized TSSD® variants

If the EJOT TSSD® standard solutions do not meet your application-specific requirements, please feel free to talk to us about special solutions. Whether it's a TSSD® for defining a distance to the component, a snap-fit TSSD® for welding onto thin monolithic materials, a TSSD® for the non-detachable joining of e.g. circuit boards or a TSSD® for holding eccentric connectors, as is common in furniture construction. Please contact our experts for further advice.
