EPPsys RSD

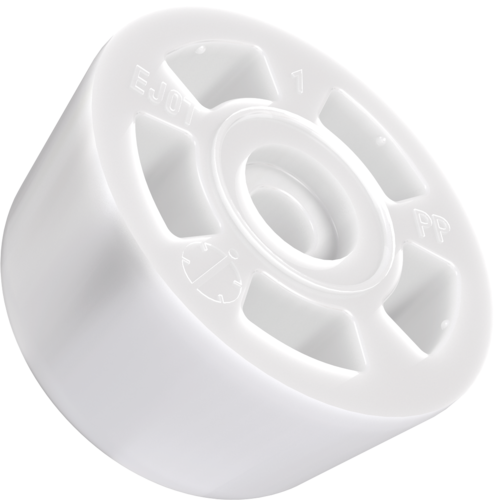

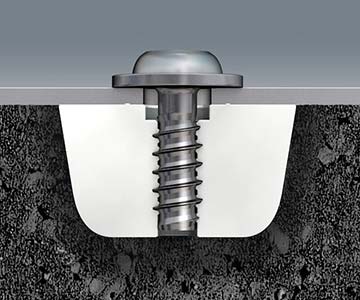

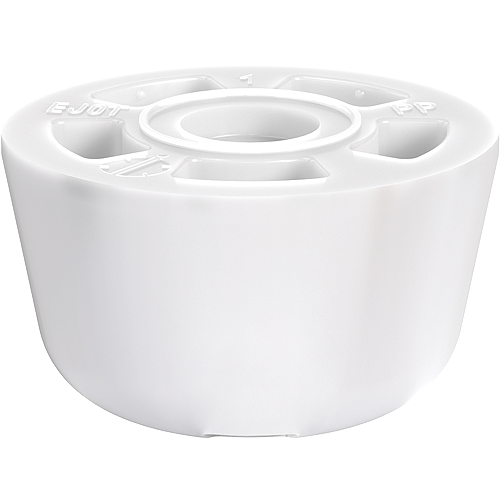

Como todos os elementos de fixação do grupo de produtos EJOT^® EPPsys, o parafuso EPPsys RSD também foi desenvolvido para fixar componentes em peças com espuma, especialmente espumas EPP (polipropileno expandido). O EJOT^® EPPsys RSD é um elemento de fixação eficaz para espuma EPP e elementos Honeycomb PP. O inovador processo de soldagem por fricção incorpora diretamente o prendedor na espuma EPP e se conecta com segurança ao material fundido. Posteriormente, o EPPsys RSD permite uma montagem direta confiável com o parafuso EJOT EVO PT^®.

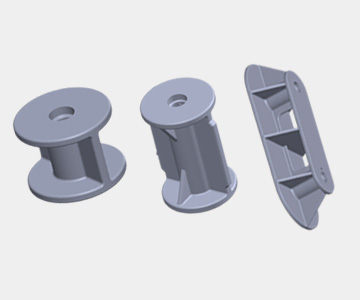

If the EJOT^® EPPsys RSD and its assembly after foaming are not suitable for you, it is also possible to create a joint with our Delta Tubus elements. These parts are inserted into the mould before the foaming process and subsequently surrounded by the EPP or similar foams. Thus, after opening the mould, you get a finished component that already contains the joining elements. EVO PT^® screws 40 or 50 are used for fastening in this case.

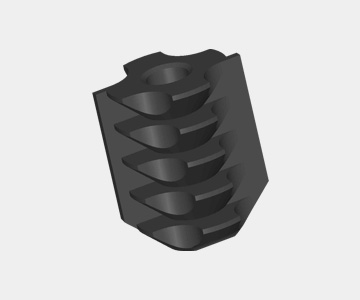

The EPP insert is the easiest solution for creating a screw-in option in foams. This element can be pressed into pre-drilled components thanks to its special ribbed geometry. No special assembly technology is required here – all that is needed is to ensure that the foam component has a pre-hole. This can be drilled or already created during the foaming process. The EPP insert is available with a metric M5 thread. Further hole geometries upon request.
